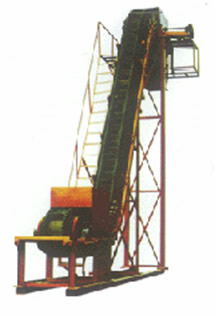

HQ, DY type mobile belt conveyor, mainly used in construction sites, mines, quarries, railway stations, ports, warehouses, etc. for loading and unloading and transportation of soil, sand, coal, gravel, grain and other materials or in scattered and fragmentary Items. Length, width, according to customer requirements.
Conveyor HQ, DY type mobile belt conveyor, mainly used in construction sites, mines, quarries, railway stations, ports, warehouses, etc. for loading and unloading and transportation of soil, sand, coal, gravel, grain and other bulk Materials or items broken into. Length, width, according to customer requirements.It consists of single or multi-unit delivery system for the transmission of synthetic materials, can deliver a density of 500 ~ 2500kg/m3 variety of bulk materials and finished materials. The machine to adapt to the temperature -20 ~ 40 ℃, for special environment to work in the belt, if required with heat, cold, water, corrosion, fire and other conditions, should also take appropriate protective measures.
ScopeUsed in metallurgy, mining, coal, ports, power plants, building materials, petroleum, chemical, light industry, material handling, can be in the room, dock, field and other transportation of materials.
Design FeaturesSeries design by parts, according to transport process requirements, according to different terrain, type design and working conditions to form entire conveyor. Conveyor allows transport of particle size depends on bandwidth, with speed, groove angle and inclination, but also on the frequency of bulk materials.
Product Specifications

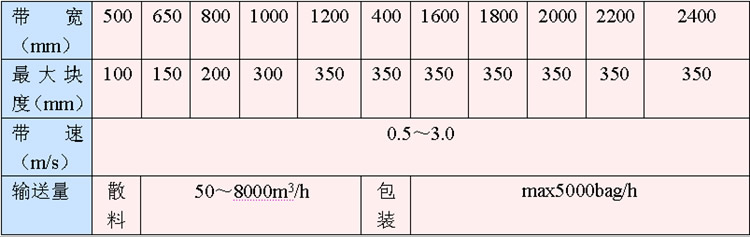

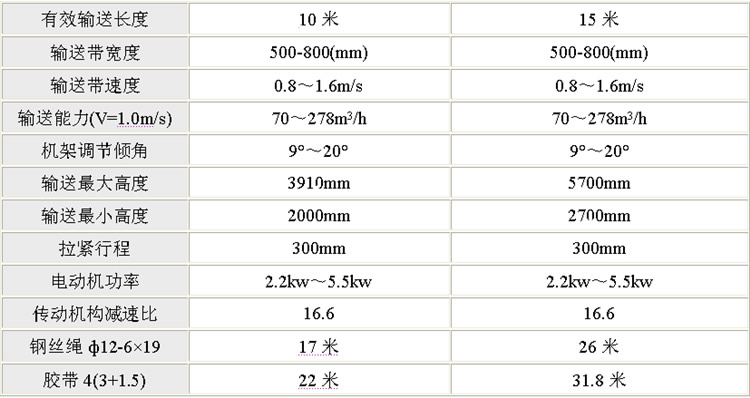

Technical parameters:
