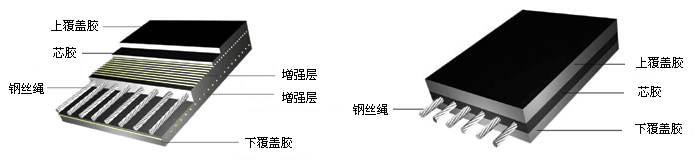

Characteristics: tensile strength, impact resistance, long life, the use of small elongation, into a good groove, good flex resistance, suitable for long-distance, large capacity, high-speed material handling.Uses: It can be widely used in coal, mining, port, metallurgy, electric power, chemical and other material handling areas.Variety: According to cover properties can be divided into: general type, flame retardant, cold type, wear resistant, heat type, acid type and other varieties.By the internal structure can be divided into: general structure type, horizontal enhanced, embedded anti-tear-type coil.

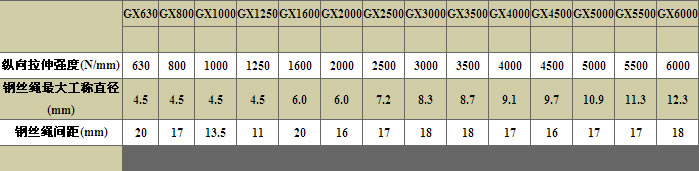

	ST630	ST800	ST1000	ST1250	ST1600	ST2000	ST2500	ST3150	ST3500	ST4000	ST4500	ST5000	ST5400	ST6000
The length of the longitudinal tensileN/mm	630	800	1000	1250	1600	2000	2500	3150	3500	4000	4500	5000	5400	6300
Nominal maximum diameter of wire rope mm	3.0	3.5	4.0	4.5	5.0	6.0	7.5	8.1	8.6	8.9/9.1	9.7	10.9	11.3	12.3
Wire spacing(mm)	10	10	12	12	12	12	15	15	15	15/17	16	17	17	18
On the cover thickness(mm)	5	5	6	6	6	8	8	8	8	8/8	8	8.5	9	10
Under the cover thickness(mm)	5	5	6	6	6	8	8	8	8	8/8	8	8.5	9	10
Reference to the quality of tape(kg/)	18	19.5	21.5	22.2	26.1	33.1	35.3	41.1	45	45/45	51	59	62	65
Width specifications	Number of roots rope
800	75	75	63	63	63	63	50	50	50
1000	95	95	79	79	79	79	64	64	64	64/65	59	55	55	54
1200	113	113	94	94	94	94	76	76	77	77/68	71	66	66	63
1400	133	133	111	111	111	111	89	89	90	90/79	84	78	78	74
1600	151	151	126	126	126	126	101	101	104	104/91	96	90	90	85
1800		171	143	143	143	143	114	114	117	117/103	109	102	102	96
2000			159	159	159	159	128	128	130	130/114	121	113	113	107
2200						176	141	141	144	144/125	134	125	125	118
2400						193	155	155	157	157/137	146	137	137	129
2600						209	168	168	170	170/148	159	149	149	140
2800									184	184/160	171	161	161	151

Tape quality according to cover thickness, densityDescription: The conveyor belt in a single volume the length of 100-1500m, by the thickness, width, transportation, installation and other conditions, the length of each volume determined by the supply and demand sides.
